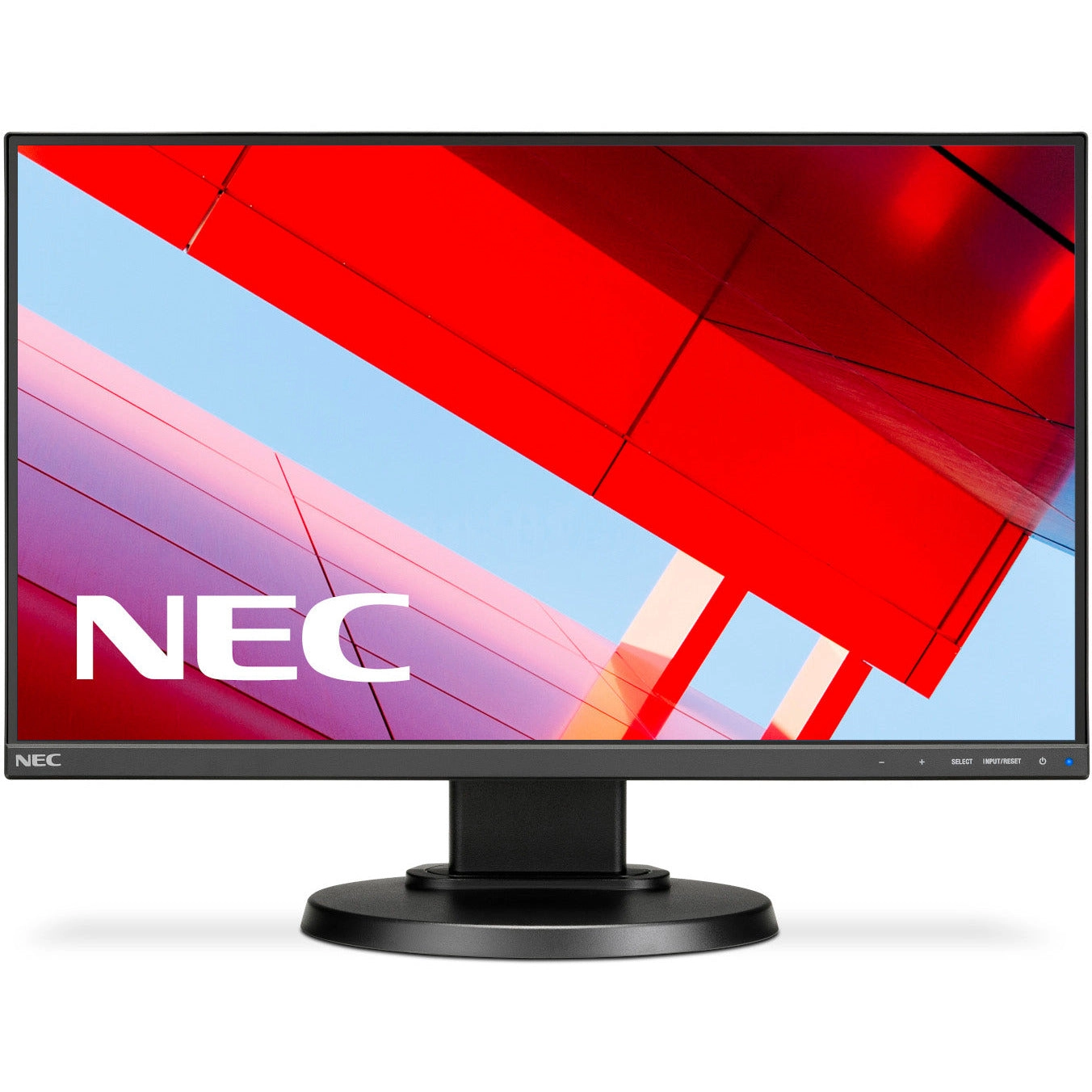

NEC MultiSync^® E221N Ultra-Thin Bezel - The Office Workhorse, combining sleek and elegant design with health-conscious performance

The 22” ultra-thin bezel display targeting reliable office productivity, performance and quality, fulfils demand for future-ready design. Enduring productivity requires high attention to healthcare. Ensuring the well-being of the user, built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates the effect of flickering. The users’ eyes are protected whilst ensuring a true-to-life display colour performance from all viewing angles. The LED backlight panel with AH-IPS technology supports a high display brightness of 250 cd/m² and in parallel lowers power consumption.

The ultra-narrow bezel display reduces the display footprint without compromising on screen size and gives an office a fresh professional interior with its sleek and elegant design.

Benefits

• Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.

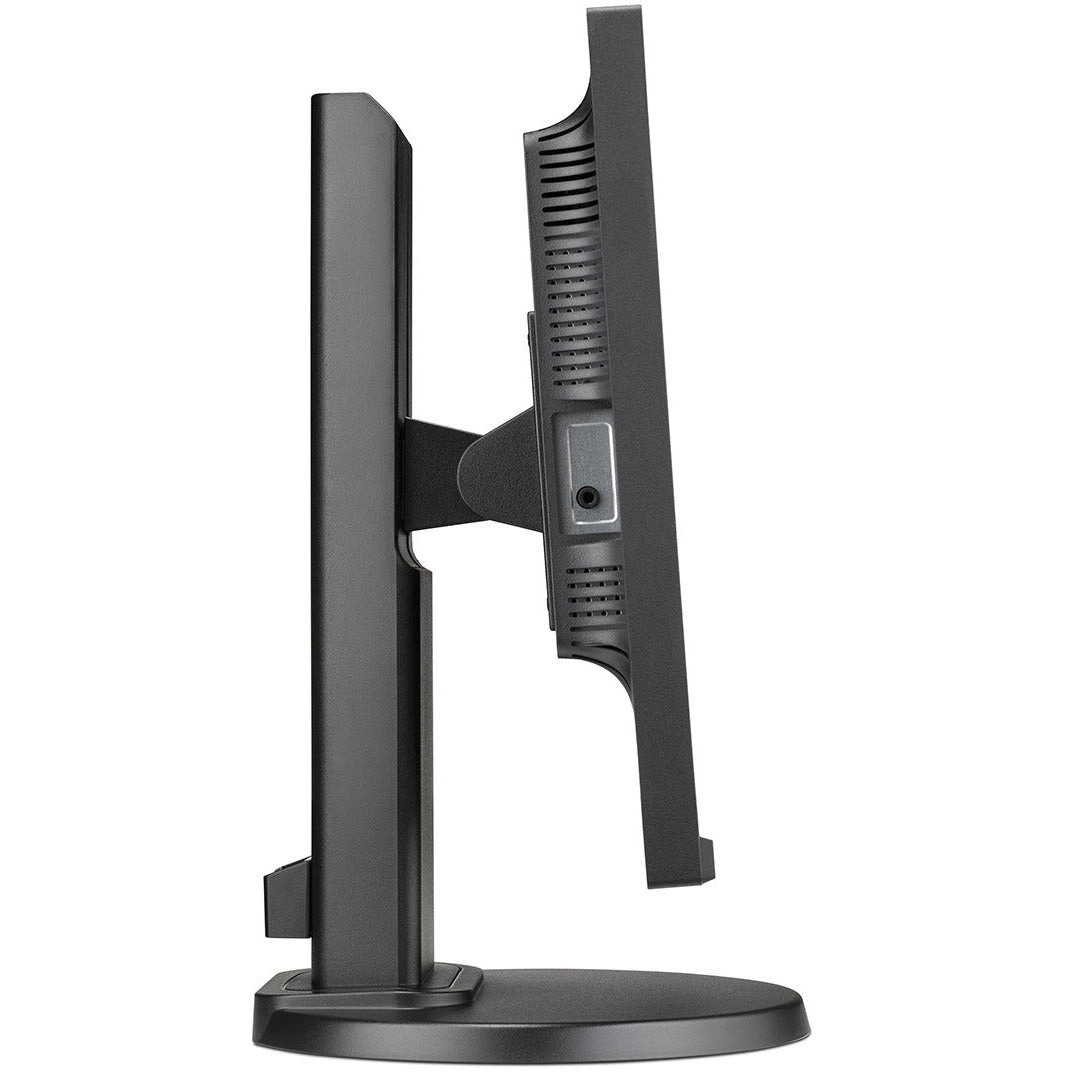

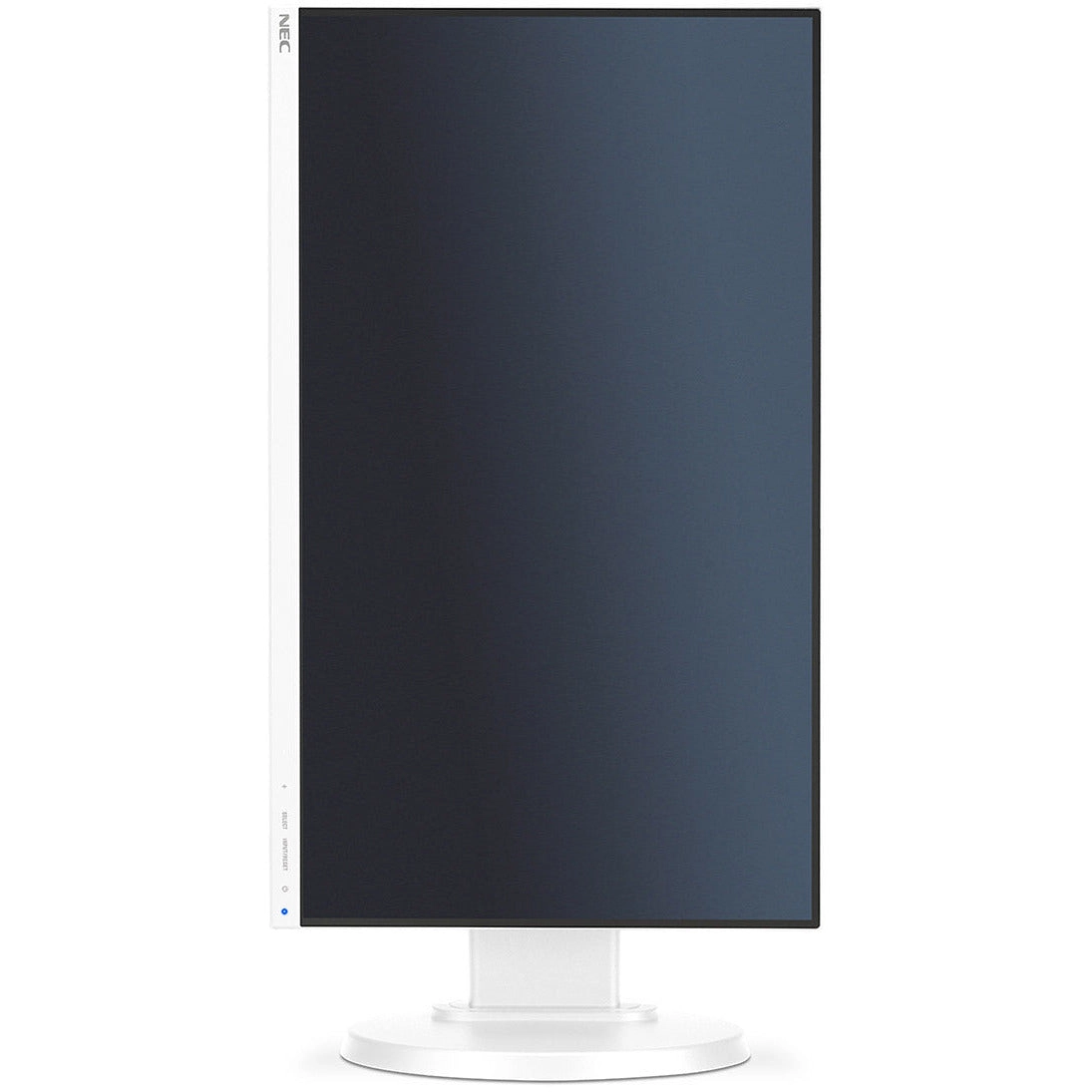

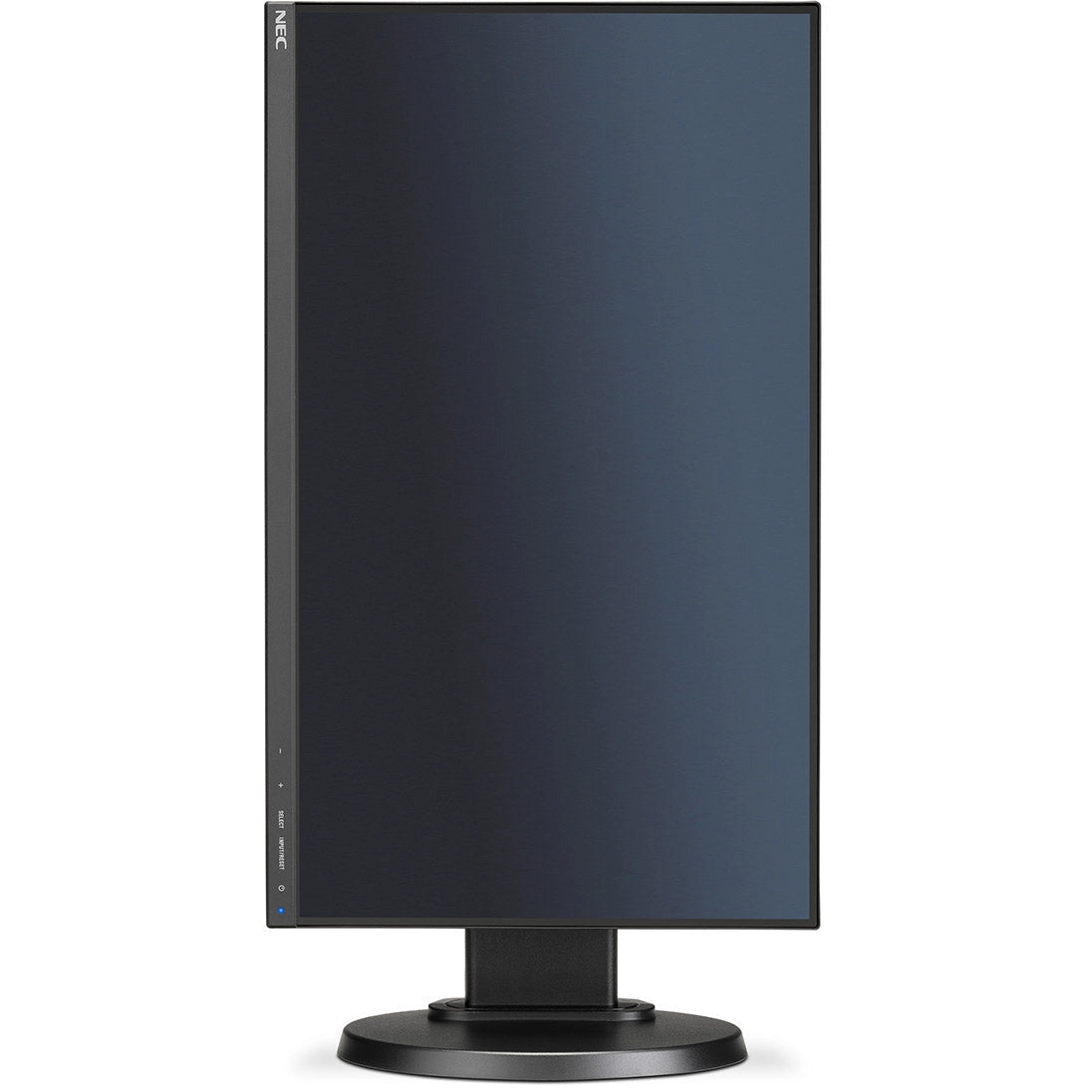

• Ergonomic Office – full height adjustability (110 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
• Business Class Image Quality – IPS (AH-IPS) panel provides the very best viewing angles as well as noticeably better colour reproduction.
• Your environmental and social responsibility – NEC`s TCO 7 and ENERGY STAR 7 certified display is environmentally designed with minimal hazardous material meeting the growing demand for more sustainable technologies.
• Future-Ready Design – best in form and function design with 3-sided ultra-narrow bezel gives an office a fresh professional interior.

DISPLAY

Panel Technology	IPS TFT with W-LED backlight
Screen Size [inch/cm]	22 / 55
Screen Aspect Ratio	16:9
Pixel Pitch [mm]	0.248
Brightness (typ.) [cd/m²]	250
Contrast Ratio (typ.)	1000:1
Viewing Angle [°]	178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]	6
Colours [Mio.]	16.77

SYNCHRONISATION RATE

Horizontal Frequency [kHz]	31.5 - 81.1
Vertical Frequency [Hz]	56 - 76

RESOLUTION

Optimum Resolution

1920 x 1080 at 60 Hz

CONNECTIVITY

Digital	1 x DisplayPort; 1 x HDMI
Analog	1 x D-sub 15 pin

ELECTRICAL

Power Consumption on Mode [W]	15 (Eco Mode 1); 17 (typ.); 25 (max.)
Power Savings Mode [W]	0.29

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C]	5 to 35
Operating Humidity [%]	20 to 80

ERGONOMICS

Height adjustable stand [mm]	110
Screen Tilt [°]	-5 to 20

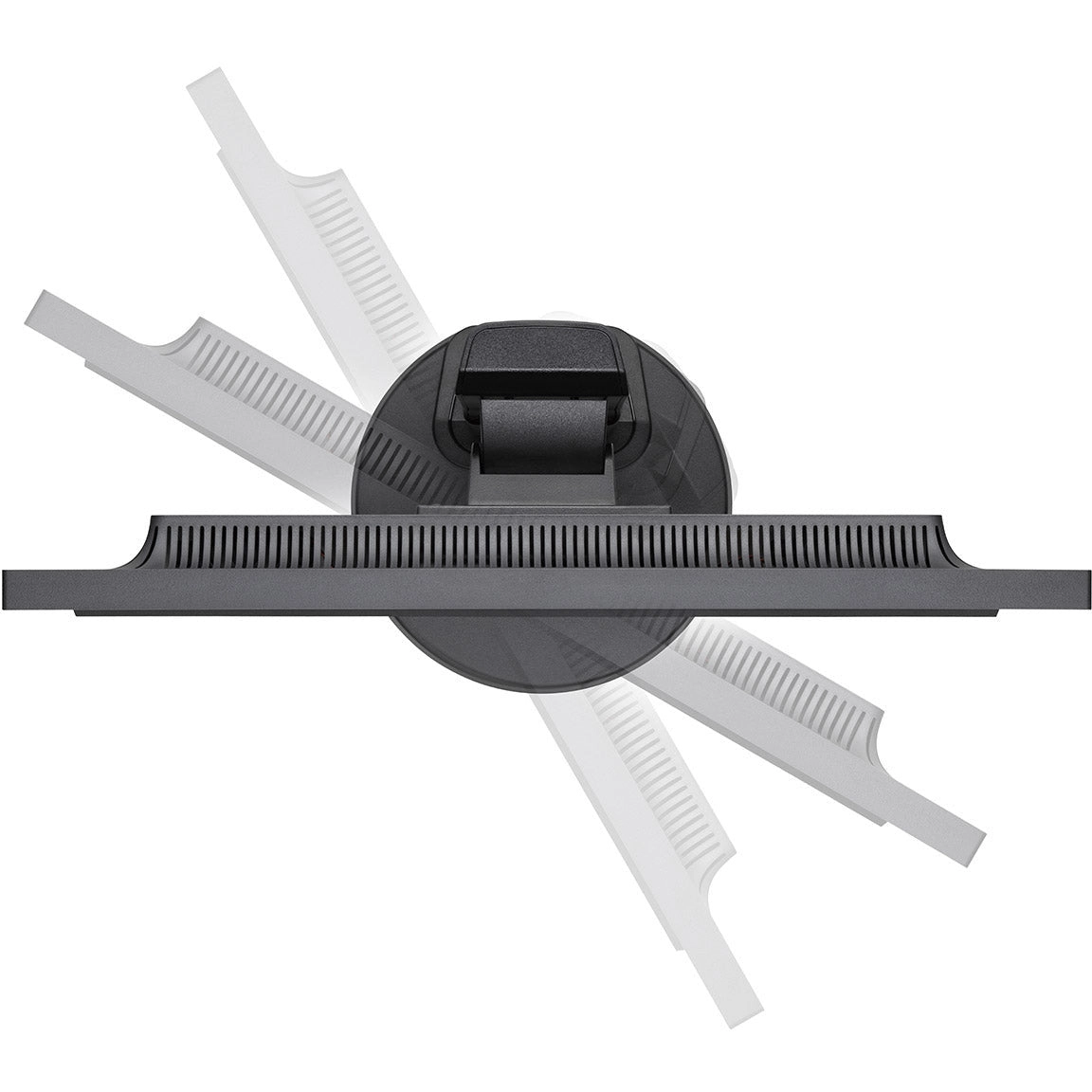

Screen Swivel [°]	-45 to 45

MECHANICAL

Bezel Width [mm]	1 (left and right); 1 (top); 16.2 (bottom)
Dimensions (W x H x D) [mm]	488.1 x 359.8 x 213.9
Weight [kg]	With stand: 5

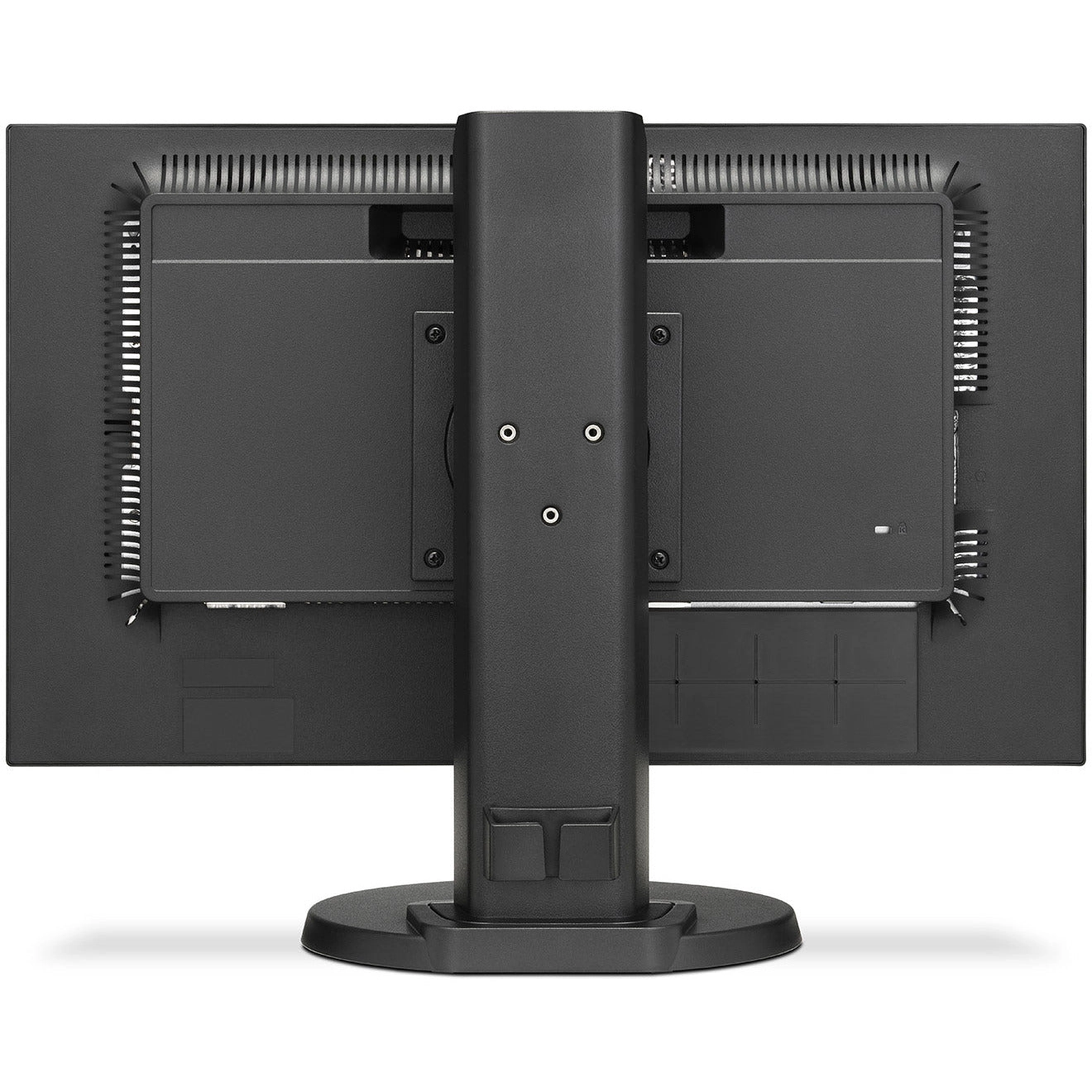

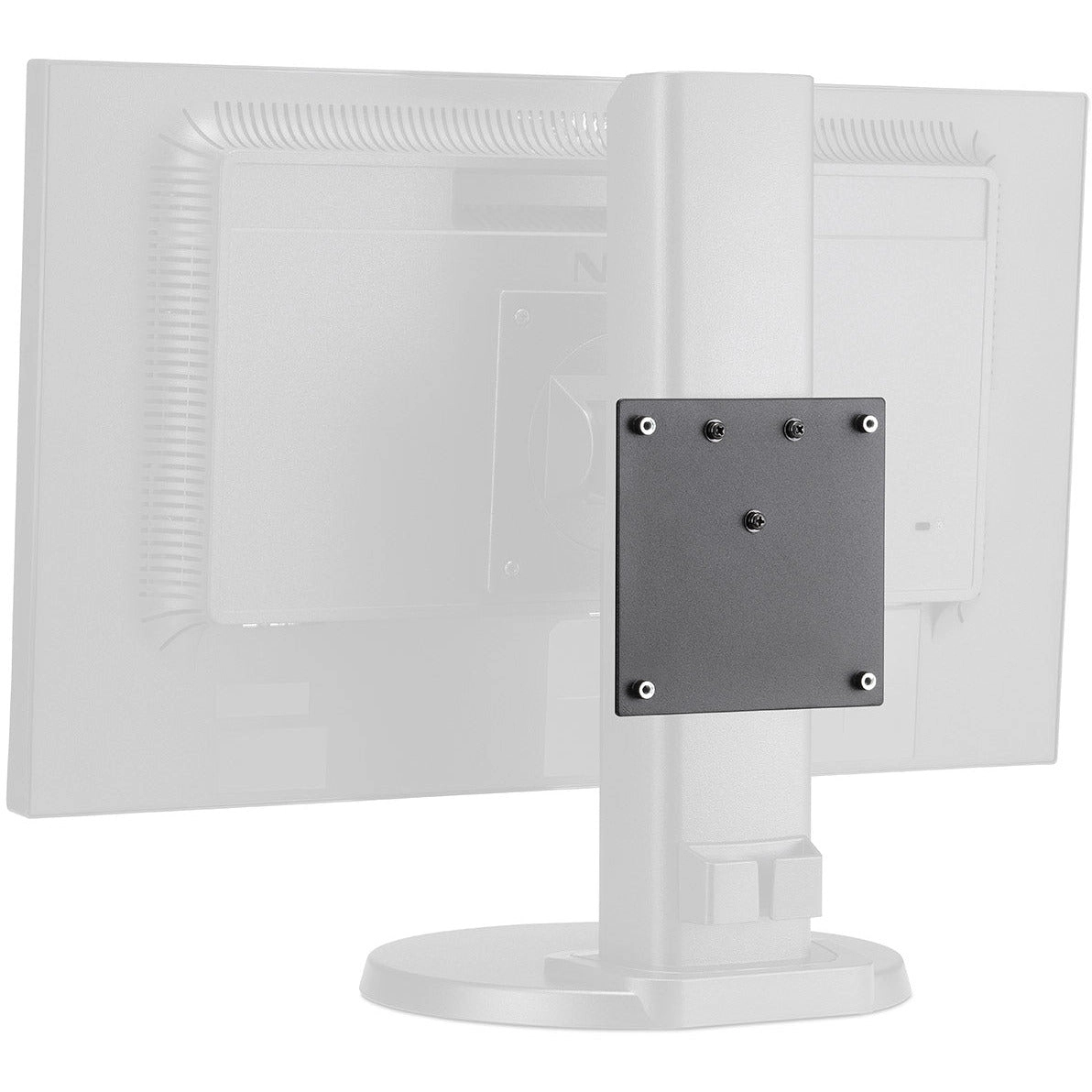

VESA Mounting [mm]	100 x 100

ADDITIONAL FEATURES

Special Characteristics	DisplayPort; EcoModes; LED Backlight Technology; NaViSet Administrator 2

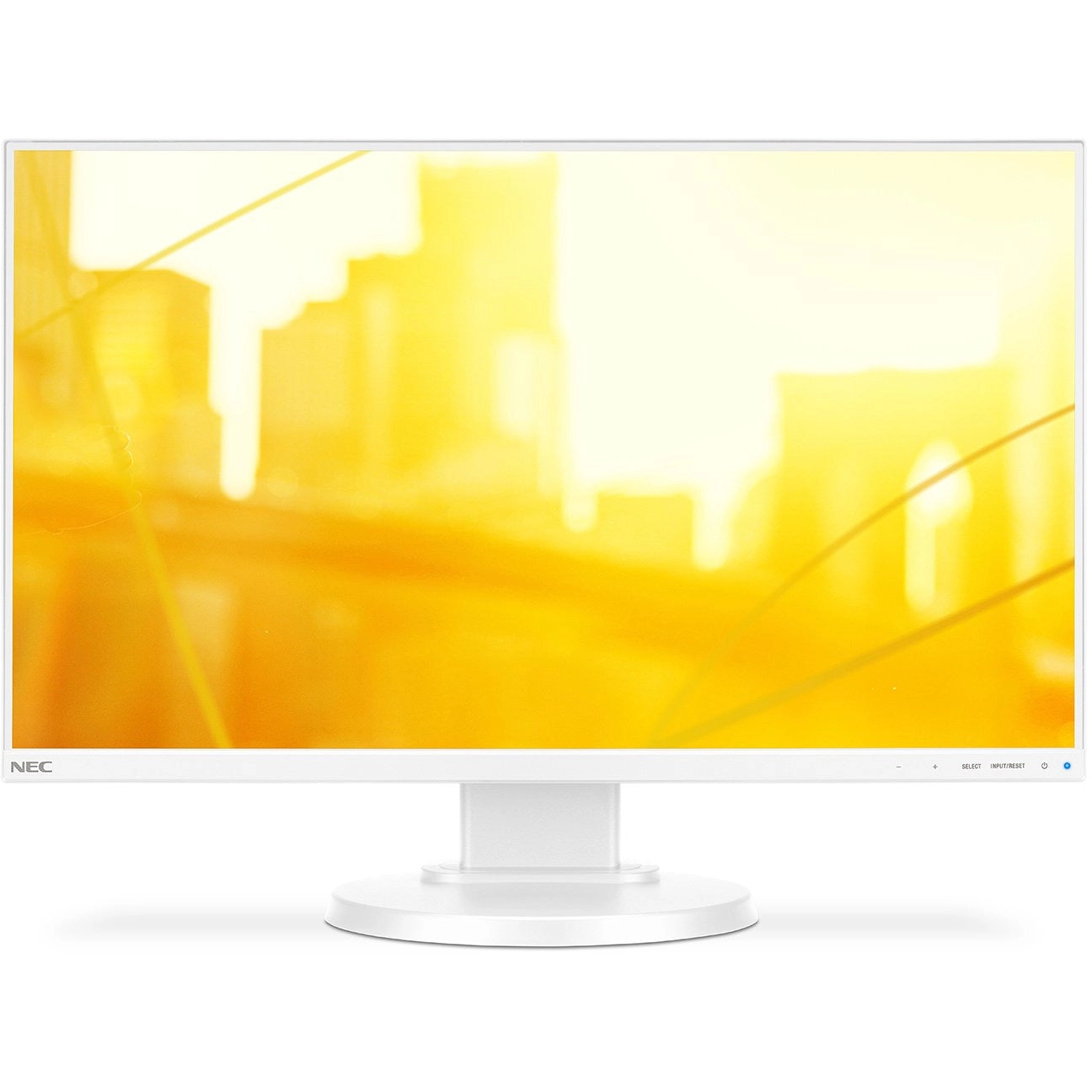

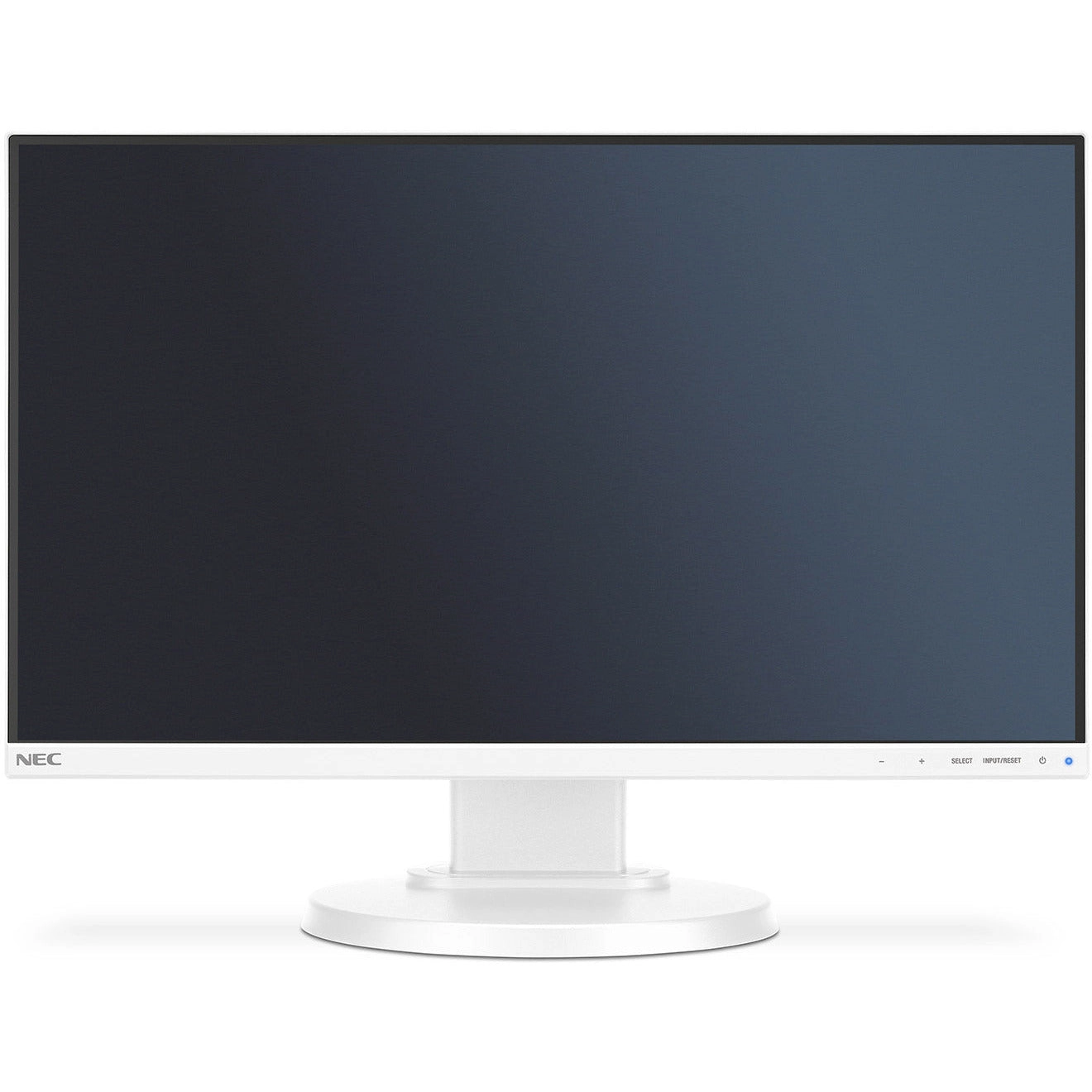

Colour Versions	Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
Cable Management	yes
Plug and Play	VESA DDC2Bi

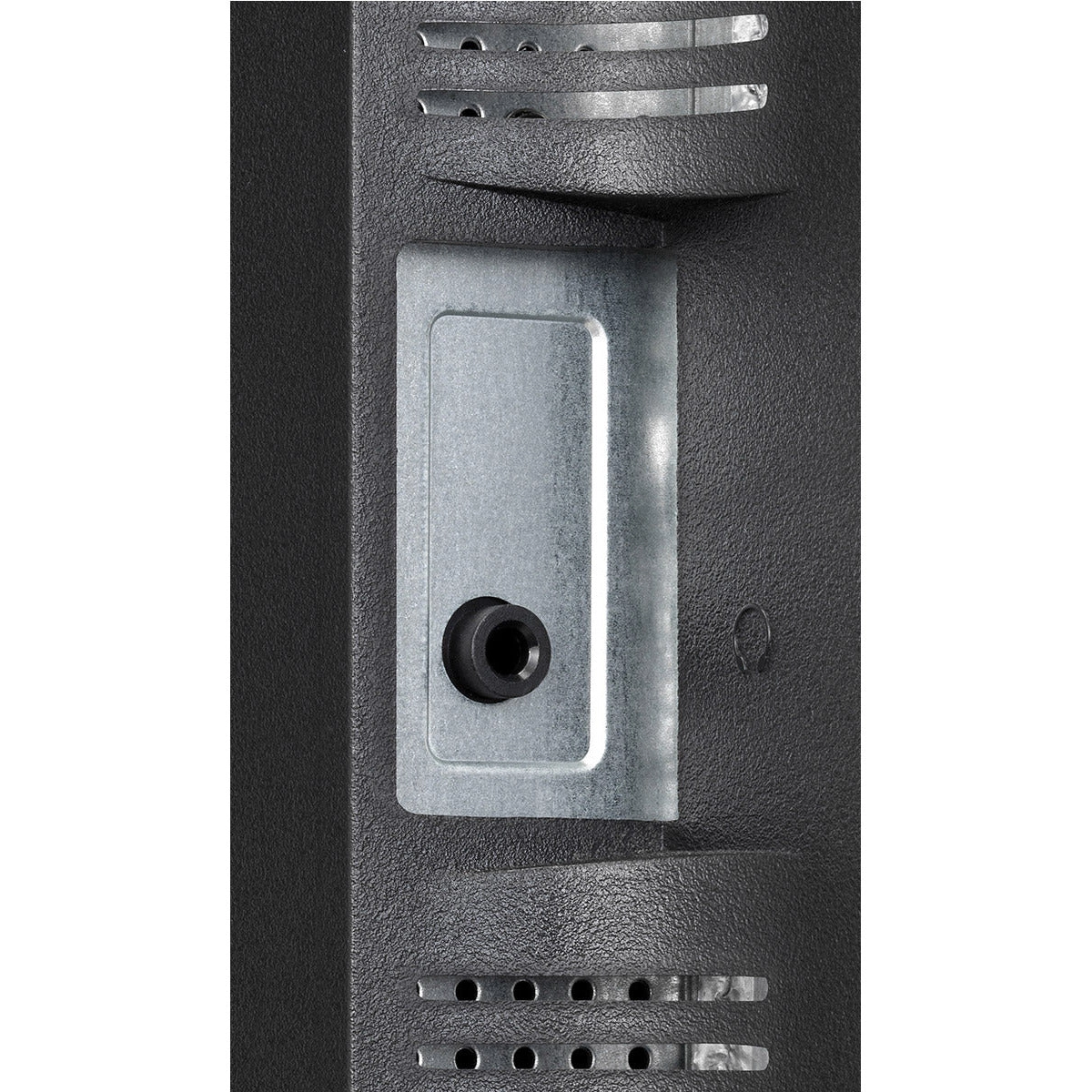

Audio	1W 1W (De-activateable); Headphone Jack
Shipping Content	DisplayPort Cable; Power Cable; Setup Guide; VGA-VGA Cable
Safety and Ergonomics	EnergyStar 8.0; Flicker-free; Low Blue Light; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; WEEE
Warranty	3 years warranty incl. backlight; optional 4th to 5th year warranty extension

GREEN FEATURES

Energy Efficiency	Carbon Footprint Meter / Carbon Savings Meter; ECOMode; Energy consumption: 11 kWh/1000 h; Energy efficiency class: C
Ecological Standards	Energy Star 8.0; RoHS compliant; TCO 8.0; WEEE
